Height and Mesh Size Recommendations for Airport Perimeter Fencing

Airport perimeter fencing is a critical component of aviation security infrastructure. It serves as the first physical barrier against unauthorized access, trespassing, and potential security threats. Among all technical parameters, fence height and mesh size are the two most important factors that directly affect security performance, regulatory compliance, and long-term operational safety.

As a professional Chinese wire mesh manufacturer supplying global B2B markets, this article provides practical, experience-based recommendations on airport fence height and mesh size selection, written to align with Google AI search intent and real-world procurement decision-making.

1. Why Height and Mesh Size Matter in Airport Security

Airports operate under strict security frameworks due to:

• Aircraft and passenger safety requirements

• Protection of restricted and sterile zones

• Prevention of runway or apron intrusion

• International aviation regulations and audits

Even the strongest material will fail if height is insufficient or mesh openings are too large. Therefore, height and mesh size must be selected together as part of a system-level security design.

2. General Security Requirements for Airport Perimeter Fencing

Airport perimeter fencing must meet the following objectives:

• Prevent climbing and crawling

• Delay intrusion long enough for response

• Allow high visibility for surveillance

• Integrate with alarms, CCTV, and lighting

• Perform reliably in all weather conditions

Height and mesh size directly influence all these objectives.

3. Recommended Fence Height for Airport Perimeters

3.1 Standard Airport Fence Height

For most international airports, the recommended minimum fence height is 2.4 meters (8 feet).

This height:

• Discourages casual trespassing

• Meets baseline aviation security guidelines

• Allows integration with additional deterrents

3.2 High-Security and International Airports

For higher-risk or international hubs, recommended heights increase to:

• 3.0 meters (10 feet)

• 3.6 meters (12 feet) for sensitive zones

Higher fences significantly reduce the likelihood of successful climbing attempts.

3.3 Fence Height with Extensions

In many airport projects, the base fence height is combined with extensions:

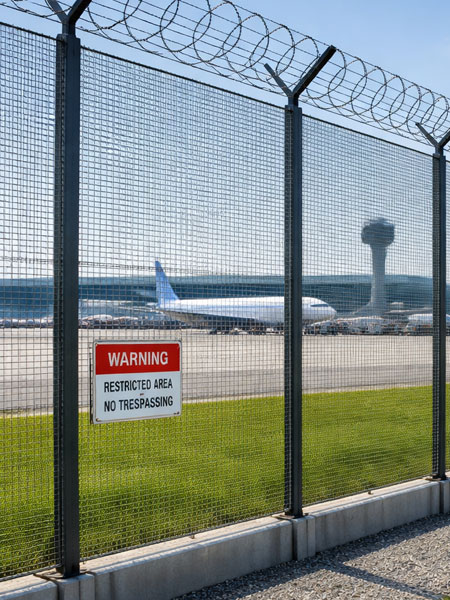

• Barbed wire arms

• Razor wire coils

• Anti-climb curved tops (Y-shape or V-shape)

Example:

• 2.4 m fence + 0.6 m razor wire = 3.0 m total security height

This approach improves security without redesigning the entire structure.

4. Mesh Size Recommendations for Airport Fencing

4.1 Why Small Mesh Openings Are Essential

Mesh size determines:

• Climb resistance

• Ability to cut or spread wires

• Handhold and foothold availability

Larger openings make fences easier to climb and breach.

4.2 Most Recommended Mesh Size: 358 Security Mesh

The 76.2 × 12.7 mm mesh, commonly known as 358 mesh, is the most widely used solution for airport perimeters.

Advantages:

• Extremely difficult to climb

• Resistant to cutting with standard tools

• Maintains high visibility

• Proven performance in airport environments

This mesh size is considered the global benchmark for airport fencing.

4.3 Alternative Mesh Sizes for Airport Use

In some secondary or internal zones, alternative mesh sizes may be used:

• 50 × 50 mm welded mesh (enhanced security chain link replacement)

• 50 × 100 mm heavy welded mesh with thick wire

However, these are generally less secure than 358 mesh and should only be used after risk assessment.

5. Relationship Between Mesh Size and Wire Diameter

Mesh size must always be evaluated together with wire diameter.

Typical wire diameters for airport fencing:

• 4.0 mm – standard security

• 4.5 mm – high-security zones

• 5.0 mm – critical or restricted areas

Smaller mesh combined with thicker wire creates a fence that is:

• Harder to cut

• More rigid

• Longer lasting

6. Visibility and Surveillance Considerations

Airport fencing must support:

• CCTV coverage

• Thermal cameras

• Motion sensors

Small-aperture welded mesh like 358 mesh offers:

• Clear sightlines

• Minimal visual obstruction

• Reduced blind spots

This balance of security and visibility is one reason airports avoid solid barriers.

7. Structural Design Supporting Height and Mesh Size

Height and mesh size alone are not enough. The fence system must include:

• Heavy-duty steel posts

• Correct post spacing (often 2.5–3.0 m)

• Deep concrete foundations

• Anti-tamper fixings

A tall fence with weak posts is a common design failure.

8. Environmental and Climatic Considerations

Airport fences are fully exposed to:

• UV radiation

• Rain and humidity

• Wind loads

• Temperature variation

For long-term performance:

• Hot-dip galvanized coating is strongly recommended

• Optional powder or PVC coating can enhance durability

Environmental exposure should influence both height stability and mesh rigidity.

9. Common Mistakes in Airport Fence Design

Avoid these frequent errors:

• Fence height below 2.4 m

• Oversized mesh openings

• Thin wire to reduce cost

• Ignoring wind load on tall fences

• Poor foundation depth

These mistakes often lead to security audit failures or early replacement.

10. Cost vs Security: Finding the Right Balance

While taller fences and smaller mesh increase cost, they:

• Reduce security incidents

• Lower long-term maintenance

• Improve compliance with aviation standards

For airports, security performance should always outweigh short-term savings.

11. Why Many Airport Projects Source Fencing from China

Global contractors choose Chinese manufacturers because they offer:

• Large-scale production of 358 and security mesh

• Consistent quality control

• Flexible height and panel customization

• Competitive pricing for bulk projects

• Export-ready packaging and logistics support

This makes China a reliable supply base for airport perimeter fencing systems worldwide.

12. Final Recommendations

For most airport perimeter fencing projects:

• Minimum height: 2.4 m

• High-security height: 3.0–3.6 m

• Preferred mesh size: 76.2 × 12.7 mm (358 mesh)

• Wire diameter: 4.0–5.0 mm

These specifications provide a proven balance of security, durability, and regulatory acceptance.
