Curvy Welded Fence

homeProductsWelded Wire Fence Curvy Welded Fence

High-Quality Curvy 3D Welded Mesh Fence for Enhanced Security and Aesthetic Appeal

Curved welded wire mesh, also known as 3D safety fence, is a specially designed welded wire mesh with a V-shaped curved curve in the longitudinal direction. It is made of high-quality carbon steel wire, and the horizontal and vertical steel wires are welded at their joints to form a strong barbed wire fence. In general, the number of V-curves varies with the height of the 3d welded mesh. Its exquisite appearance, solid structure and excellent visibility make it a popular security fence, widely used in railways, airports, schools, factories, residential areas, gardens, parks, stadiums, etc.

Contact Us MORE INFO

Specification

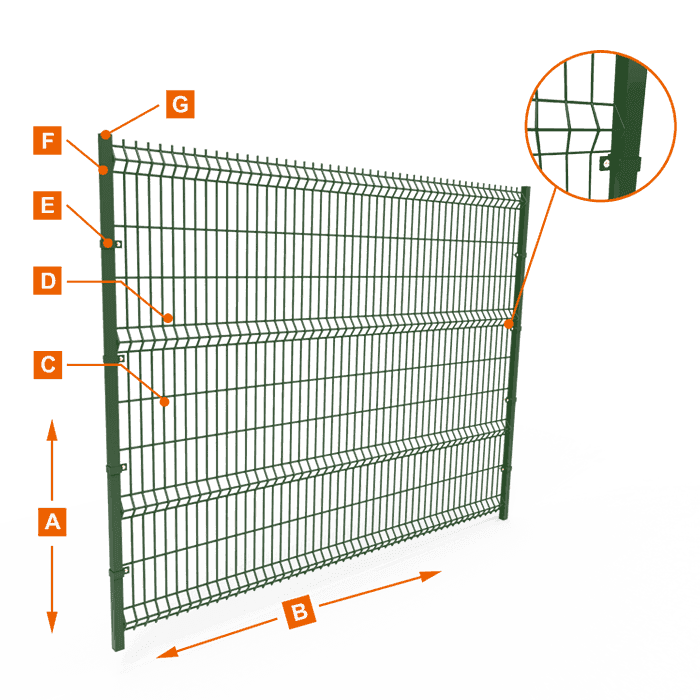

The picture shows the diagram and details of the curvy welded fence.

A Height: 630 mm, 830 mm, 1030 mm, 1230 mm, 1430 mm, 1530 mm, 1630 mm, 1730 mm, 1830 mm, 1930 mm, 2030 mm, 2230 mm, 2430 mm

b Width: 2000 mm, 2500 mm, 2900 mm

c Wire Diameter: 3.0 mm, 3.5 mm, 4.0 mm, 4.5 mm, 5.0 mm

d Mesh Opening: 50 × 100 mm, 50 × 150 mm, 50 × 200 mm, 75 × 100 mm, etc.

e Clamp: metal clamp / anti-UV plastic clamp / no clamp (for peach post)

f Post: Round post (48 OD × 1.5/2.0 mm, 60 OD × 1.5/2.0 mm);
Square post (50 × 50 × 1.5/2.0 mm, 60 × 60 × 1.5/2.0 mm, 80 × 80 × 1.5/2.0 mm);
Rectangular post (40 × 60 × 1.5/2.0 mm, 40 × 80 × 1.5/2.0 mm, 60 × 80 × 1.5/2.0 mm, 80 × 100 × 1.5/2.0 mm)

g Post Cap: metal cap/anti-UV plastic cap

Notes:

All colors are available in Ral;
Other materials and specifications are available upon request.

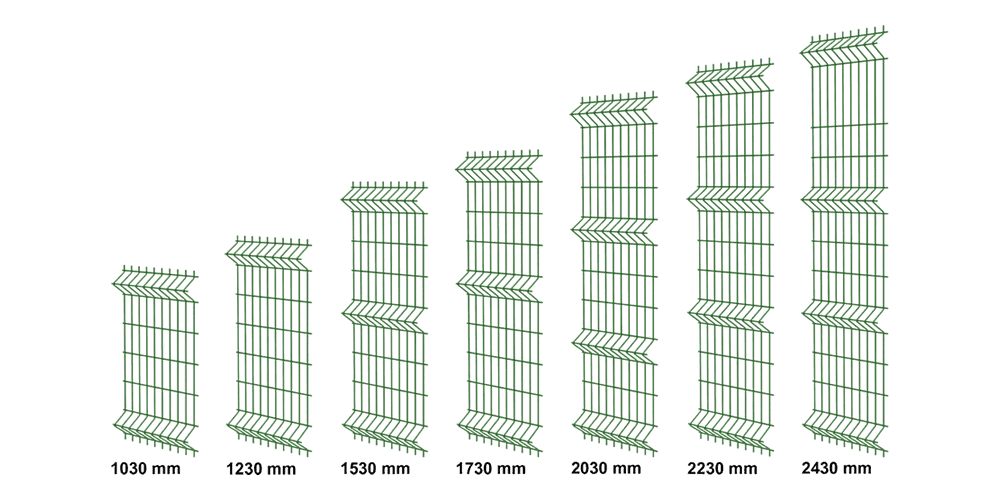

If the fence height falls between 630 mm and 1430 mm, it will have 2 folds; if the fence height falls between 1530 mm and 1930 mm, it will have 3 folds; if the fence height falls between 2030 and 2430, it will have 4 folds as shown below.

Relations between fence height and the number of folds

Category

Surface Treatment

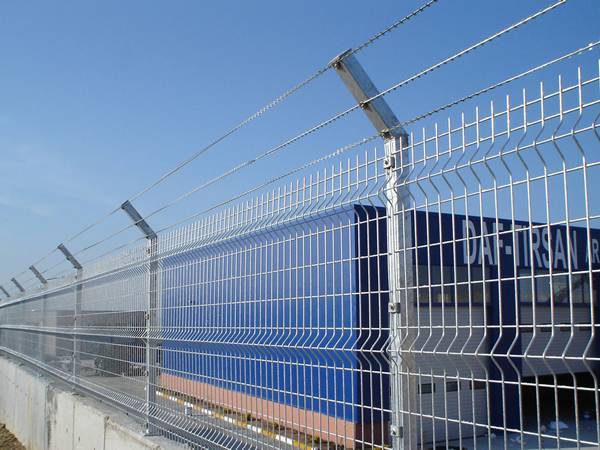

Galvanized curvy welded fence

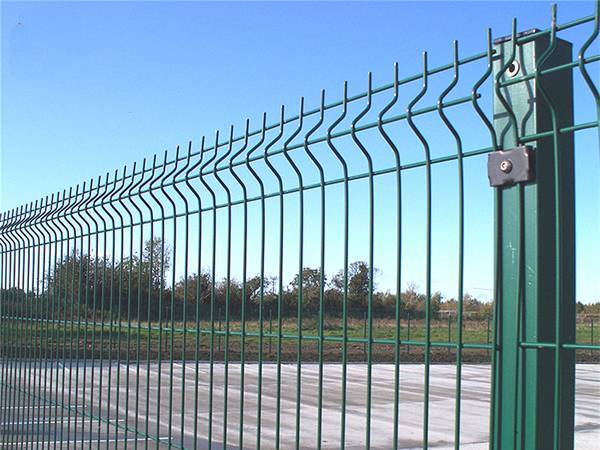

Powder coating curvy welded fence

Components & Accessories

The main component of Australia temporary fence is 3d welded fence panels, panel clamps and plastic feet as shown below.

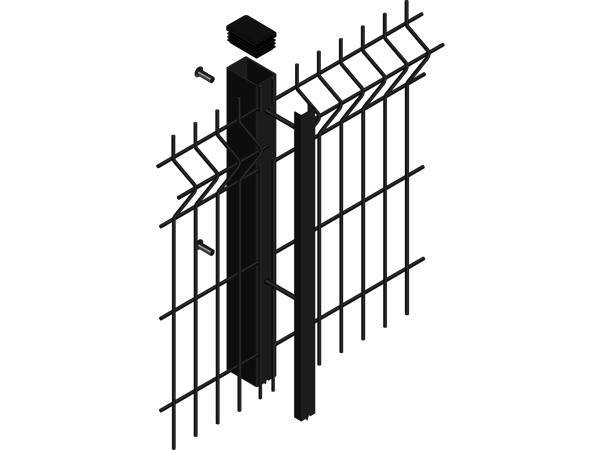

Clamp bar connection

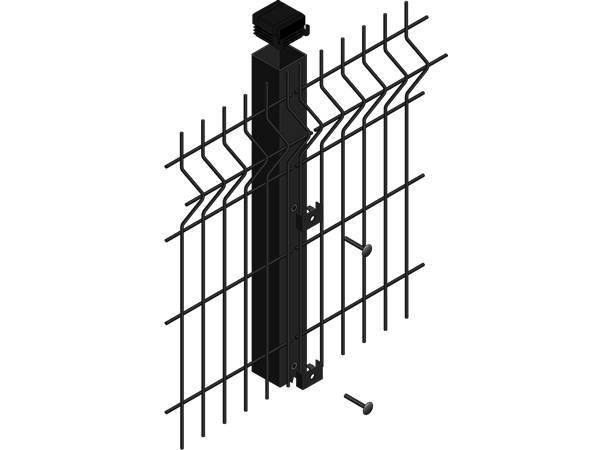

Metal clamp connection

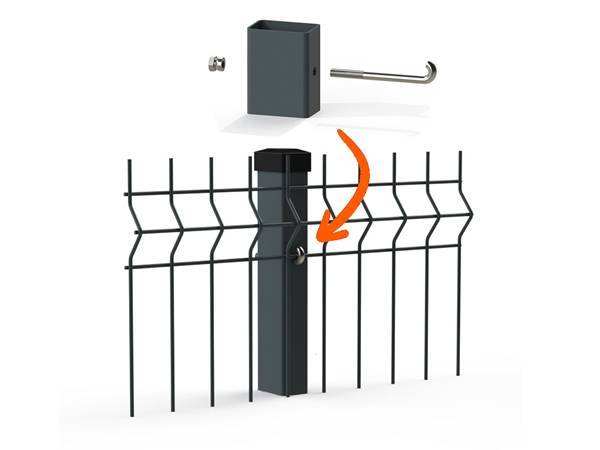

J bolt connection

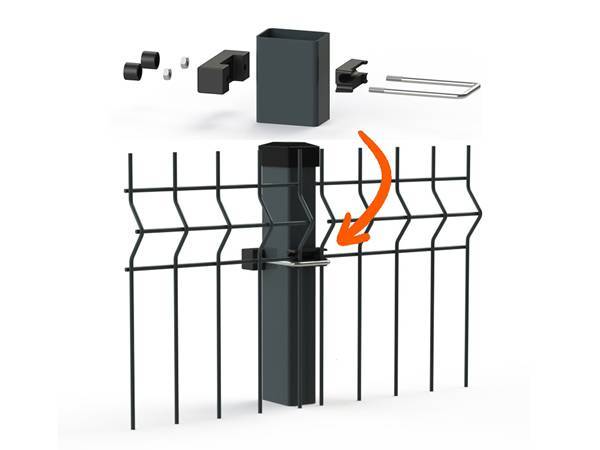

U bolt connection

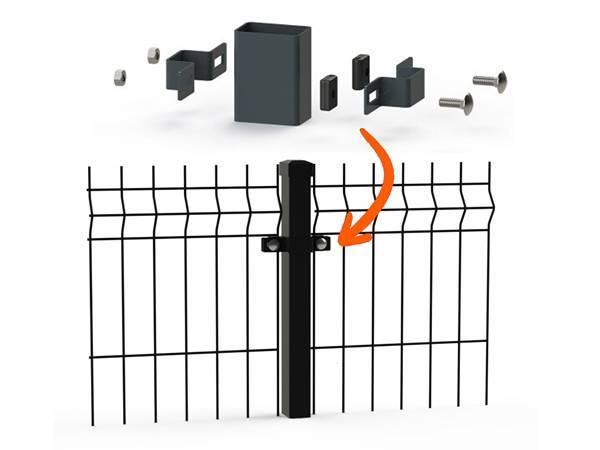

Square clamp connection

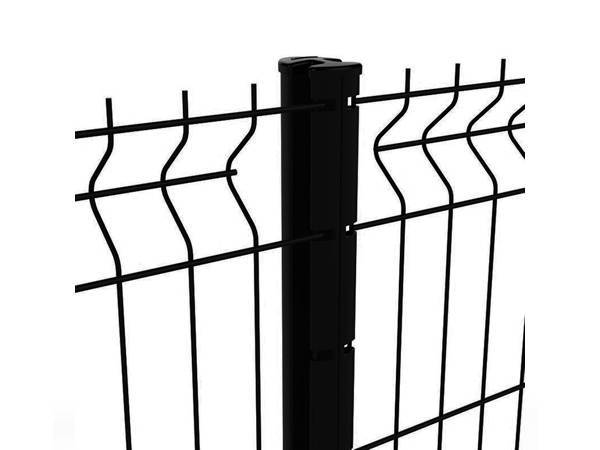

Peach post connection

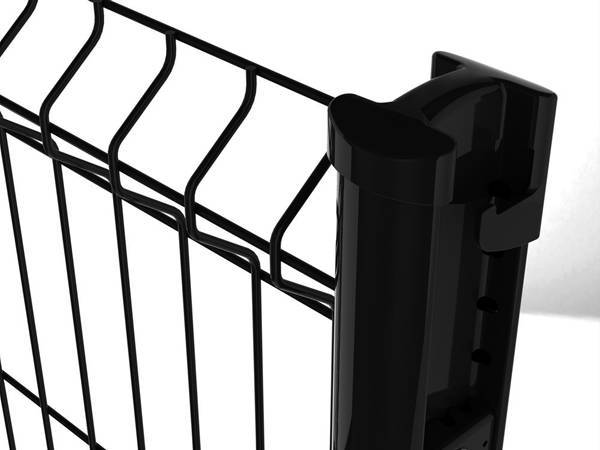

I post connection

Optional Accessories

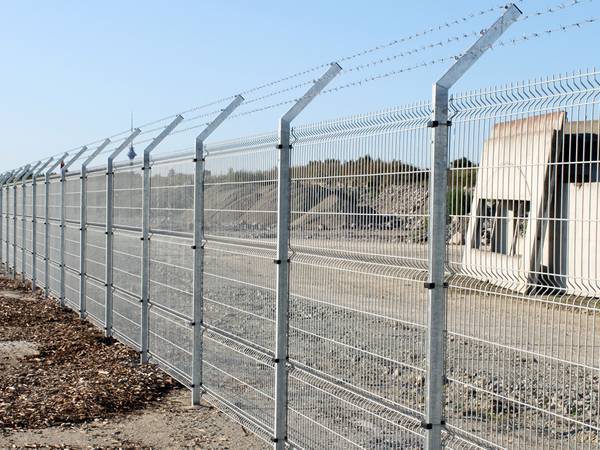

Barbed wire

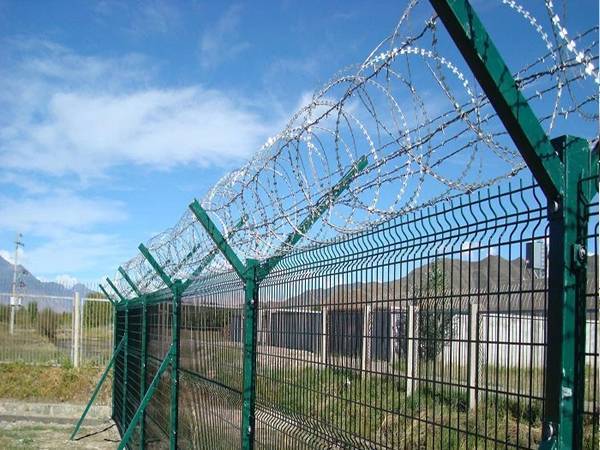

Razor wire

Production

Production Flow Chart

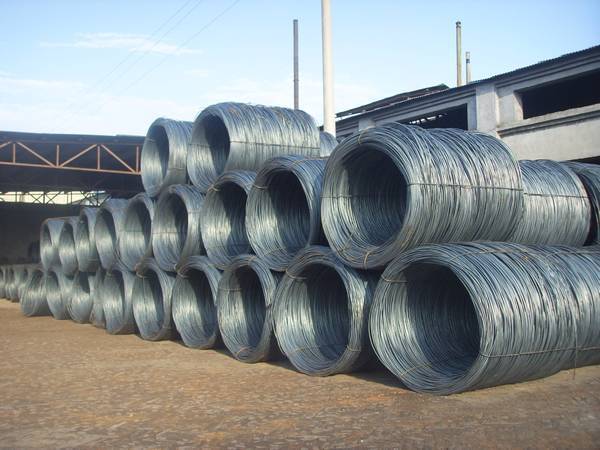

Many carbon steel wire rolls are placed on the ground.

Step 1

raw materials (carbon steel wires)

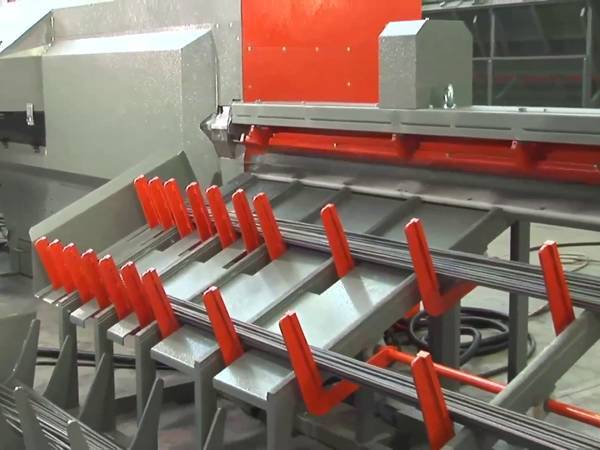

Steel wires are straightened and cut into designed length.

Step 2

steel wire straightening and cutting

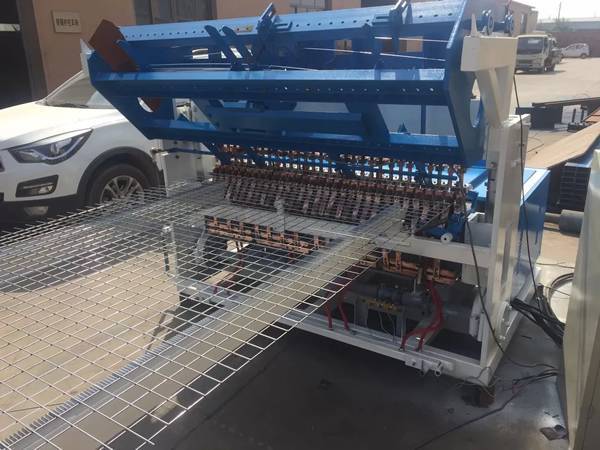

A welding machine is producing welded wire mesh.

Step 3

wire mesh welding

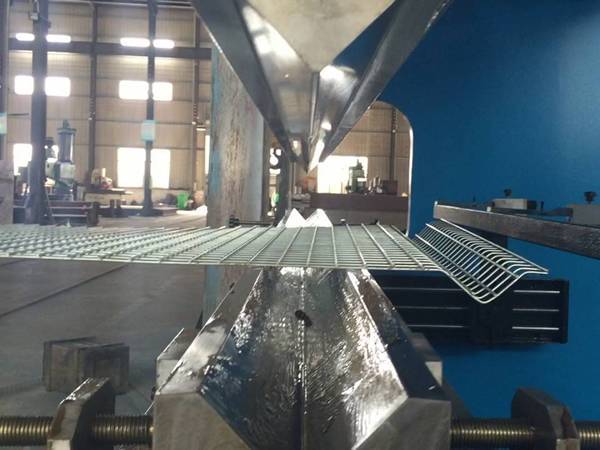

A bending machine is bending the welded wire mesh

Step 4

wire mesh bending

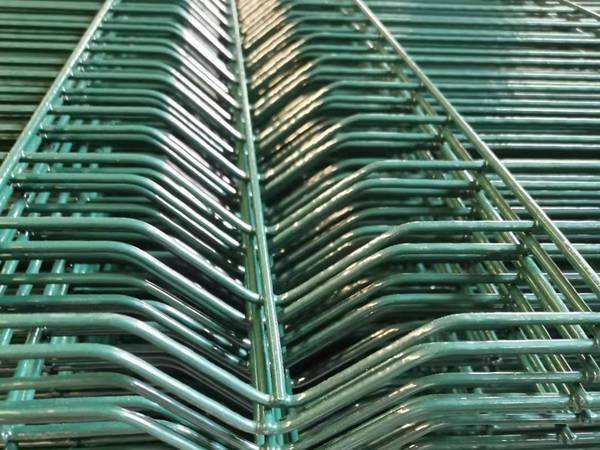

A pile of powder coating curvy welded fence panels are displayed.

Step 5

wire mesh powder coating

Many powder coating curvy welded fence panels are placed on the pallet.

Step 6

finished curvy welded fence panels (powder coating)

Package & Delivery

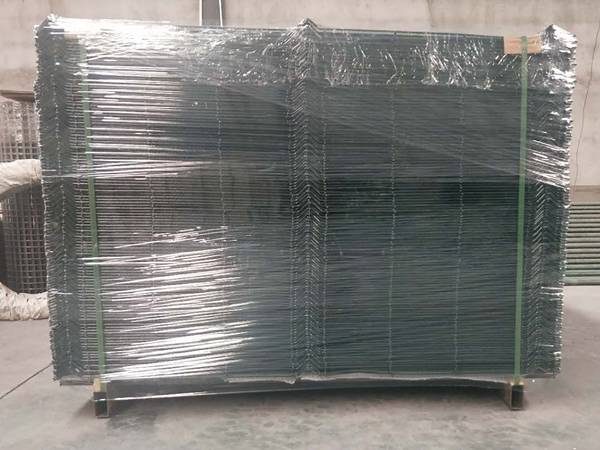

Curvy welded fence panels are properly packaged with plastic film and belts.

Curvy welded fence panel package

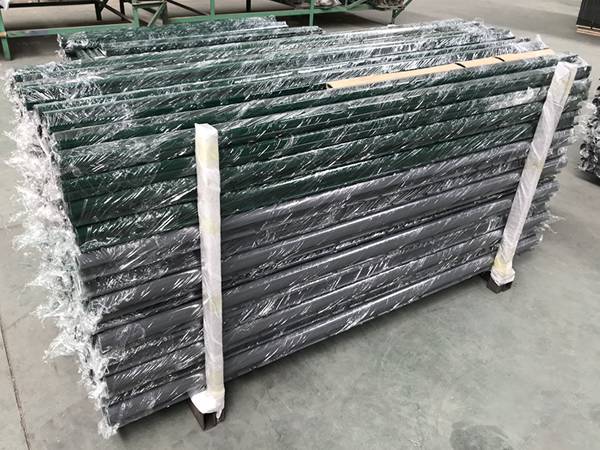

Curvy welded fence posts are properly packaged with plastic film and placed on the pallet.

Curvy welded fence post package

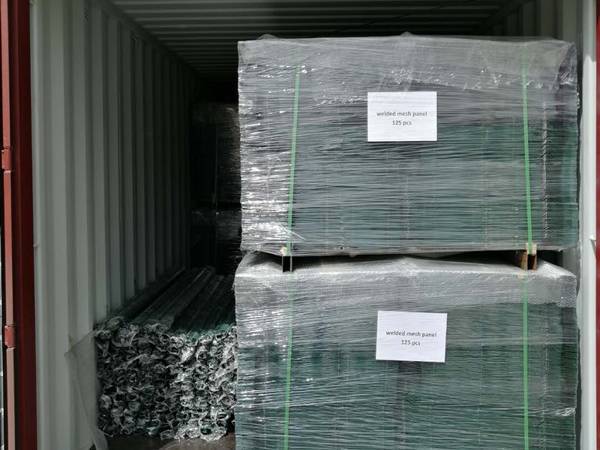

Curvy welded fence posts and panels are properly packaged and placed on the compartment.

Curvy welded fence delivery

Features

Beautiful appearance. Its unique bending curves make it have an authentic 3D outlook compared with other fence panels.
Ridge structure. Its bending curves not only offer a beautiful surface but also strengthen its rigidity.
Cost effective. It provides a competitive price while maintaining high quality, rigidity and long life service.
Corrosion resistance & weatherproof performance. Its galvanized and powder coating surface give excellent rust & corrosion resistance to withstand various harsh environment conditions.
Long service life. The galvanized and powder coating treatment allows the curvy welded fence working properly for 10 years.
Less maintenance. It has a solid structure, so it will not damage easily. Besides, its excellent corrosion resistance and weatherproof performances keep it work properly under harsh environments and extend its maintenance period.

Gallery

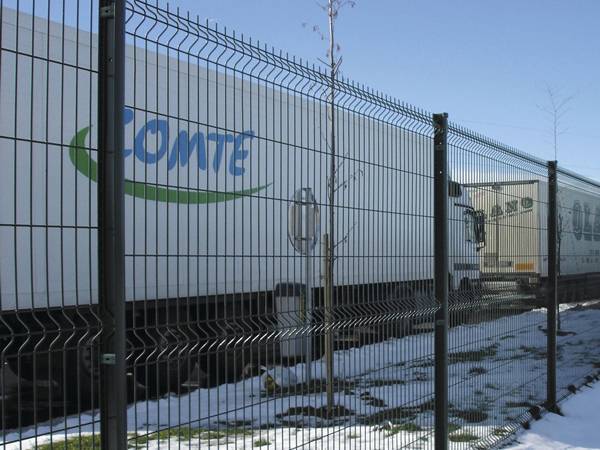

Curvy welded fence is used to create boundaries for truck parking.

Curvy welded fence for truck parking

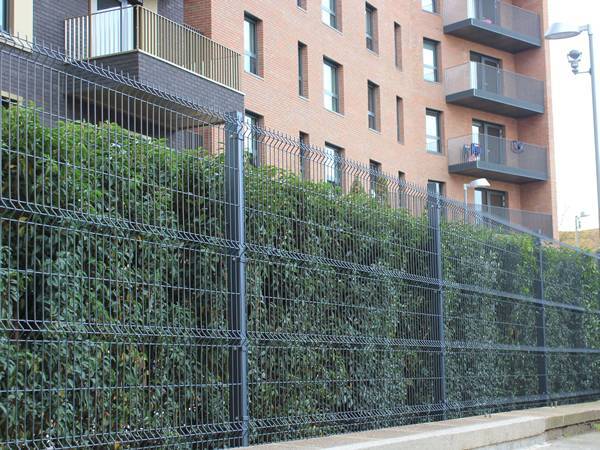

Curvy welded fence is used to create boundaries for residential communities.

Curvy welded fence for residential communities

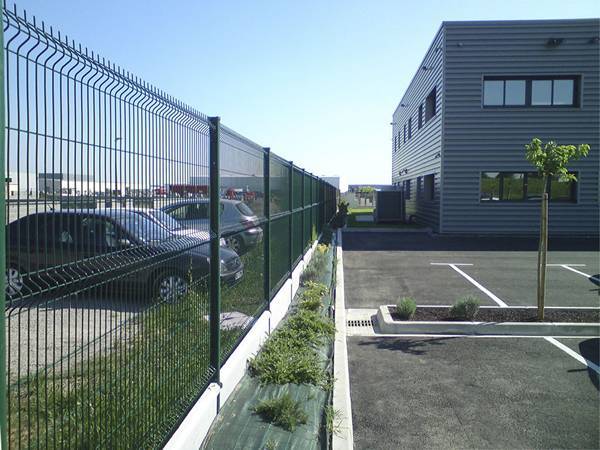

Two cars are parking in the factory yard made of curvy welded fence.

Curvy welded fence for factory yards

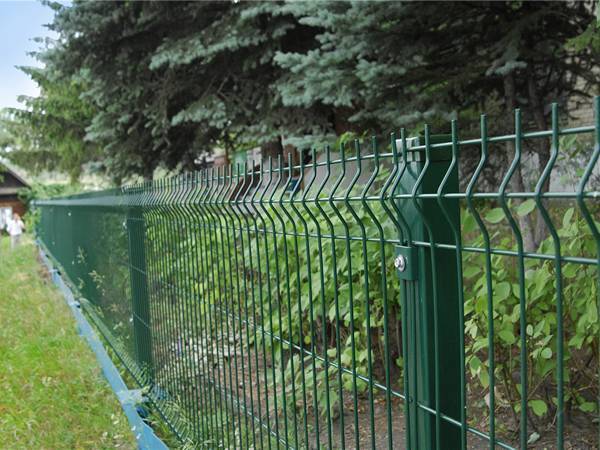

Curvy welded fence is used to create boundaries for parks to protect trees and plants there.

Curvy welded fence for parks

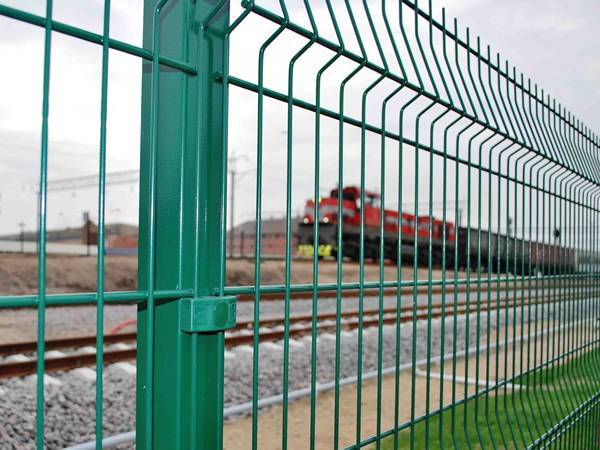

Curvy welded fence is placed along the railway to prevent others from entering.

Curvy welded fence for railway

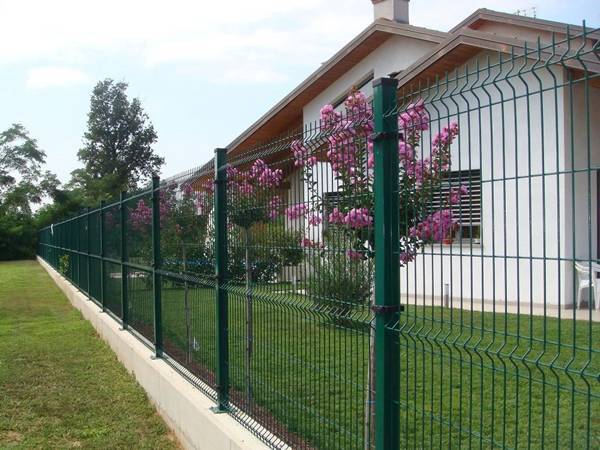

Curvy welded fence is used to create boundaries for gardens.

Curvy welded fence for gardens
